THRTTL BDY, 4150-4 BBL 1.75in. BORE

Manufacturer: EDELBROCK
Part number: 38783
MPN: 38783
UPC: 085347387830
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

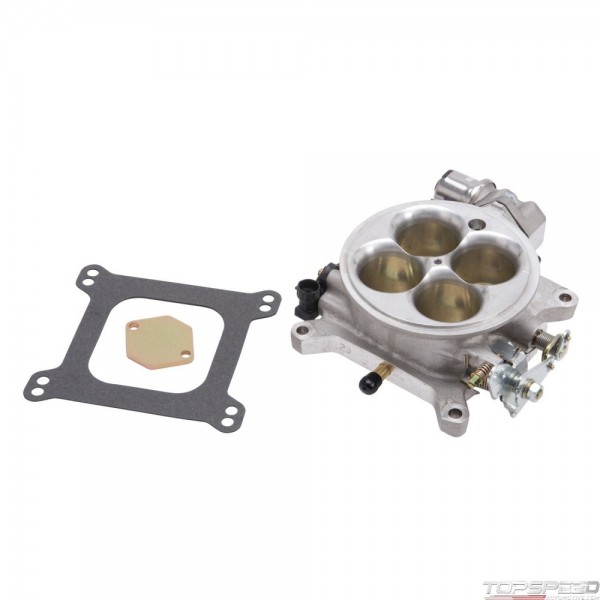

The Edelbrock PN: 38783 Victor EFI 4-Barrel Throttle Body complements our Victor EFI line of manifolds. This throttle body mounts on a standard 4150-style square-bore carburetor bolt spacing. It is sand cast, fully machined, and assembled by Edelbrock. The PN: 38783 has 1.75in. Throttle Bores and accepts a Standard (5-1/8in. Flange) Air Cleaner assembly. A 2-Pin Hitachi PWM Style IAC Motor and 3-Pin TPS are included. Satin Finish

THRTTL BDY, 4150-4 BBL 1.75in. BORE - Part number: EDL-38783 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 38783 - THRTTL BDY, 4150-4 BBL 1.75in. BORE fuel-injection-throttle-body

Data sheet

Type
4 Barrel
Finish
Satin
Material
Aluminum
Flange Type
4150
Gasket Or Seal Included
Yes
Cubic Feet Per Minute Rating
1000
Bore Diameter
1.75 in
Series
Universal 4-Barrel
Quantity
Sold Individually
Idle Air Control Motor Included
Yes
Throttle Position Sensor Included
Yes

Package dimensions

Width: 10.50 inch
Height: 5.75 inch
Depth: 10.50 inch
Weight: 5.45 lb
