SBC VALVE SPRING KIT

Manufacturer: Summit Racing
Part number: 174000
MPN: 174000
UPC: 190861017825
Availability: Out-of-Stock
£162.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

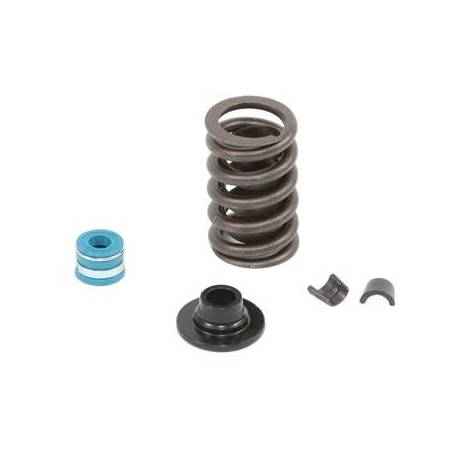

Valve Springs, Retainers, Single Springs, Steel Retainers, Locks, Single Groove, Seals, Chevy Small Block, Kit

Installing a new camshaft is a sure way to improve horsepower--just remember that the rest of the valvetrain must be upgraded for proper operation. These Summit valve spring and retainer kits include everything you need to keep your engine running in top shape after a cam swap. Each kit features high-quality valve springs, steel retainers and locks, and Viton seals.

SBC VALVE SPRING KIT - Part number: SUM-174000 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 174000 - SBC VALVE SPRING KIT engine-valve-cover

Data sheet

Notes
Designed for Chevy small block applications. 0.550 in. maximum lift. installed at 1.750 in. Includes Viton valve stem seals. O.D. guide .530 in. Modification may be needed.
Quantity
Sold as a kit.
Damper Spring Included
Yes
Locks Included
Yes
Retainers Included
Yes
Lock Groove Quantity
1-groove
Valve Spring Style
Standard
Number of Springs Per Valve
Single
Outside Diameter of Outer Spring (in)
1.260 in.
Spring Rate (lbs/in)
358 lbs./in.
Valve Springs Coated
No
Valve Stem Seals Included
Yes
Valve Stem Diameter (in)
0.344 in.
Valve Stem Diameter (mm)
8.74mm
Retainer Material
Steel
Lock Style
7 degree
Lock Material
Steel
Valve Guide Diameter (in)
0.530 in.
Inside Diameter of Outer Spring (in.)
0.875 in.

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
