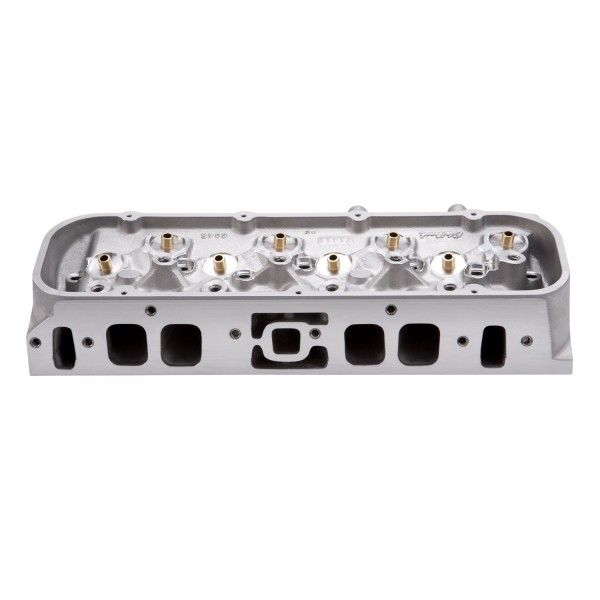

CYL HEAD PERF RPM BBC OVAL PORT NHRA LEGAL BARE

Manufacturer: EDELBROCK
Part number: 60447
MPN: 60447
UPC: 085347604470
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

The Edelbrock PN: 60447 Performer NHRA Stock/Super Stock Cylinder Heads are designed for Big-Block Chevy Oval Port V8 applications. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

CYL HEAD PERF RPM BBC OVAL PORT NHRA LEGAL BARE - Part number: EDL-60447 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 60447 - CYL HEAD PERF RPM BBC OVAL PORT NHRA LEGAL BARE engine-cylinder-head

Data sheet

Type
Bare
Engine Make/Size
Chevy Big Block (396-502)
Emission
Non-Emissions
Finish
Satin
Material
Aluminum
Usage
Street/Performance
Cylinder Head Type
Oval Port- Large
Grade Type
Performance
Preparation
Requires Professional Preparation (Bare)
CNC Ported
No
Combustion Chamber Volume
110.0 CCM
Deck Thickness
0.562 IN
Guide Plates Included
Yes
Head Casting Number
31-6045
Guide Plate Material
Hardened Steel
Intake Runner Volume
290.0 CCM
Push Rod Diameter
0.375 IN
Valve Angle
26 DD
Deck Height
9.8 IN

Package dimensions

Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 36.70 lb
