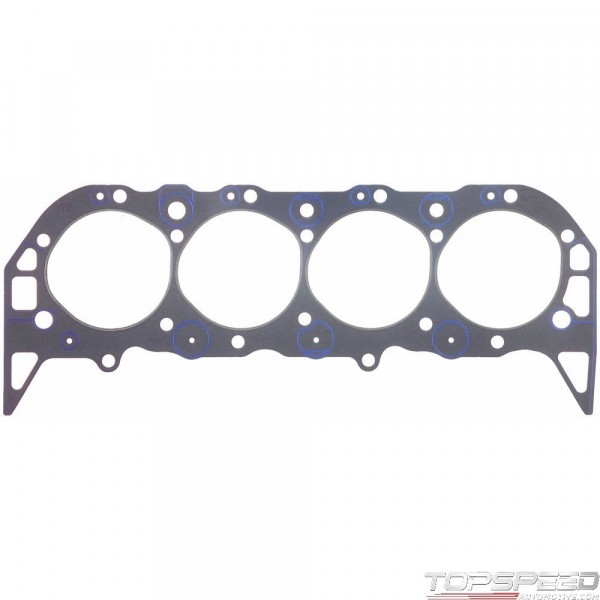

PERFORMANCE CYLINDER HEAD GASKET

Data sheet

Agricultural Equipment

N

Application Specific

N

Car Light Truck

N

Engine Specific

N

Feature 1

Accommodates high cylinder pressure and cylinder head movement

Feature 2

Wire ring design with stainless steel armor surrounds each cylinder

Feature 3

Highly concentrated sealing around combustion chamber

Feature 4

Validated for fit, form and function

Feature 5

Unsurpassed quality you can trust

Freight Class

55

Heavy Duty Truck

N

High Performance

Y

Industrial Off Highway Equipment

N

Marine

N

Medium Duty Truck

N

Motorcycle ATV

N

Non Vehicle Specific

N

Personal Watercraft

N

Small Engine

N

Snowmobile

N

Transmission Specific

N

Engine Family

Chevrolet V8 Big Block

Part Type

Cylinder Head Gaskets

What is in the box

In the box: cylinder head gasket

Bore Size (in.)

4.370

Combustion Chamber Volume (cc)

9.70

Combustion Seal Design

Pre-flattened copper wire

Engine Displacement

396, 402, 427, 454, 502, 510, 540, 572

Materials/Construction

Steel core laminate

Product Notes

Fits Gen IV pass. car and H/P block; Fits Gen IV truck and Bow Tie block; Does not fit Gen V block; Does not fit Gen VI block; Two coolant holes per end; Three lower coolant holes; No brinelling of aluminum heads

Thickness (in.)

0.039

Application Notes

Aluminum heads
