SBC HYD.ROL. CAM STG1
Availability:
Out-of-Stock
Description

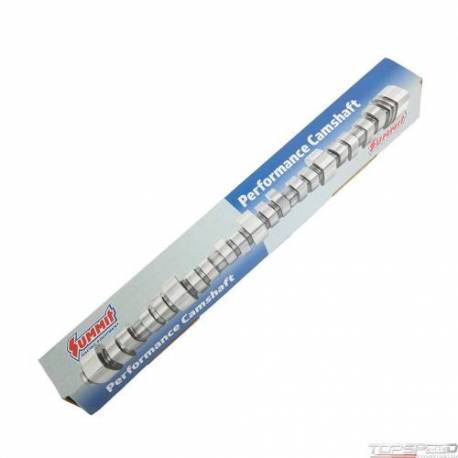

Summit Pro SBC Stage 1 Hydraulic Roller Cam, 204/214 Dur., 112 LSA + 1 Adv, .450/.450 Lift, Idle-5800 RPM Range, 1987-02 Chevrolet Gen 1 Roller Block
Are you looking for a great Made-In-America hydraulic roller cam for your Small Block Chevy? Summit Racing's new Pro SBC cams are affordable and utilize the latest lobe design technology. Starting with American bearing steel billets, they are precision machined on modern CNC grinder with CBN diamond wheels for unmatched quality.
Are you looking for a great Made-In-America hydraulic roller cam for your Small Block Chevy? Summit Racing's new Pro SBC cams are affordable and utilize the latest lobe design technology. Starting with American bearing steel billets, they are precision machined on modern CNC grinder with CBN diamond wheels for unmatched quality.
SBC HYD.ROL. CAM STG1 - Part number: SUM-8800 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 8800 - SBC HYD.ROL. CAM STG1 engine-camshaft
Data sheet
- Notes
- This is a step nosed cam for use with a cam retainer plate. If used with a 1995-1997 LT1 with vented Optispark, the dowel pin will need to be removed and replaced with one that protrudes .650 in. to drive the Optispark.
- Quantity
- Sold individually.
- Advertised Exhaust Duration
- 267
- Advertised Intake Duration
- 257
- Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.450 in.
- Intake Valve Lift with Factory Rocker Arm Ratio
- 0.450 in.
- Basic Operating RPM Range
- 1,500-6,000
- Valve Springs Required
- No
- Cam Style
- Hydraulic roller tappet
- Camshaft Gear Attachment
- 3-bolt
- Intake Duration at 050 inch Lift
- 204
- Exhaust Duration at 050 inch Lift
- 214
- Duration at 050 inch Lift
- 204 int./227 exh.
- Advertised Duration
- 257 int./267 exh.
- Lobe Separation (degrees)
- 112
- Computer-Controlled Compatible
- Yes
Package dimensions
Width: 25.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 12.00 lb
